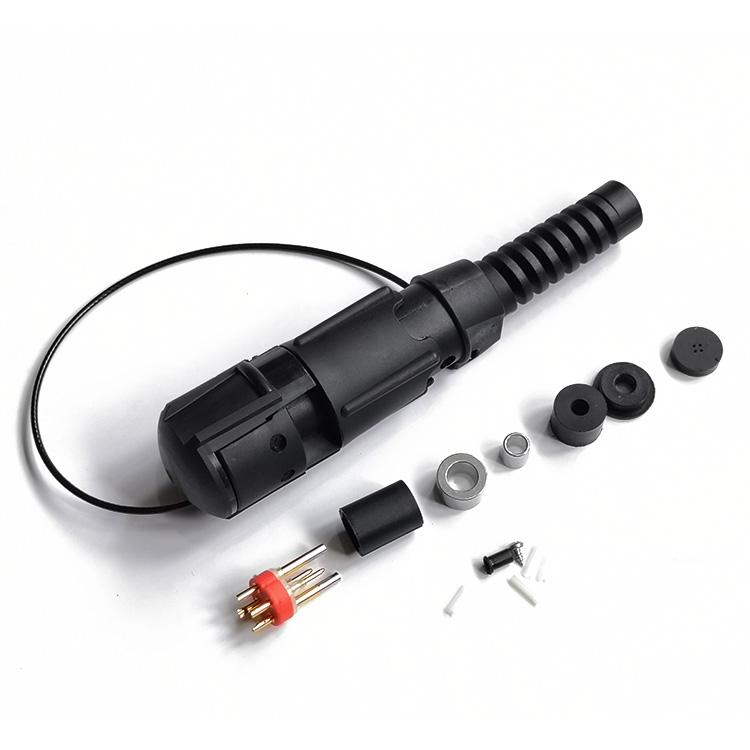

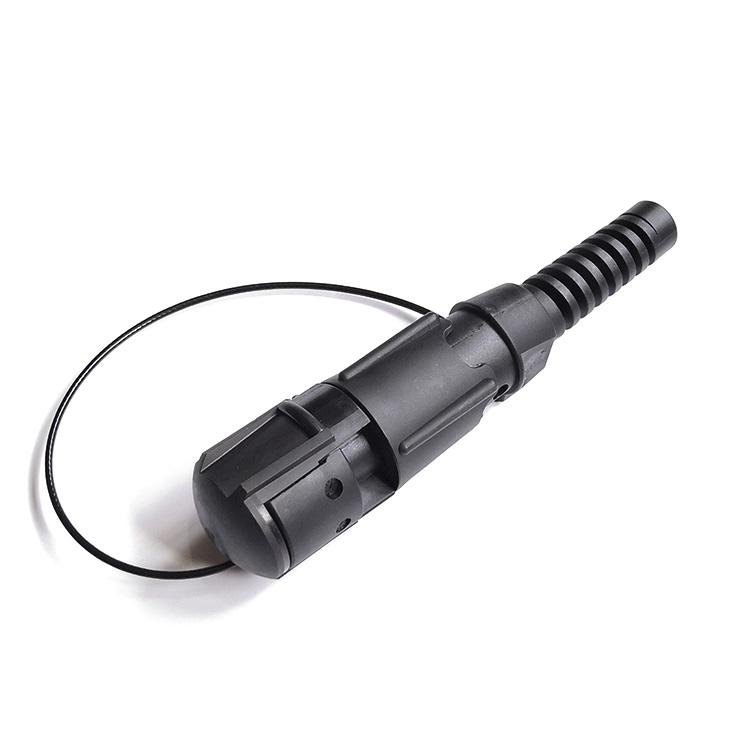

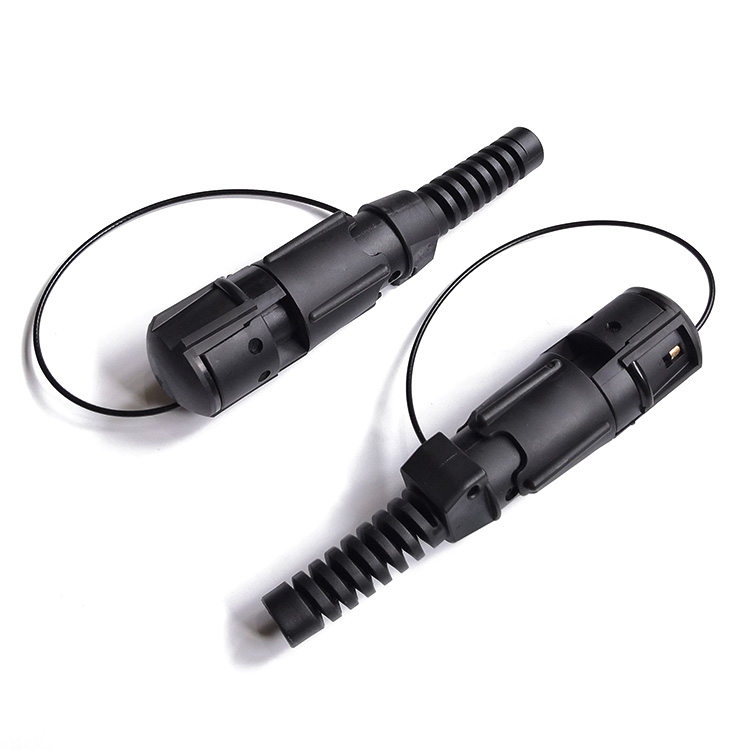

4 Pin FM4 Connector WPSR

The 4-Pin FM4 Connector WPSR is a rugged, high-performance accessory designed for seamless integration with 428XL telemetry cables in seismic oil and gas exploration systems. Engineered to ensure reliable signal transmission and durability in harsh environments, this connector plays a vital role in maintaining robust connections between field devices, data acquisition units, and telemetry networks.

Key Features:

• Weatherproof Design: IP67-rated sealing protects against dust, water ingress, and corrosion, ensuring stable performance in rain, mud, or extreme temperatures.

• Secure Signal Integrity: Gold-plated contacts minimize resistance and signal loss, critical for transmitting precise seismic and analog data.

• Quick-Mating Mechanism: A user-friendly twist-lock system enables fast, tool-free installation and disconnection, reducing downtime during field operations.

• Rugged Construction: Reinforced housing made of high-strength, UV-resistant thermoplastic withstands impacts, vibrations, and abrasion in demanding terrains.

• 428XL Compatibility: Specifically designed for WPSR (Wireless Portable Seismic Recorder) configurations within 428XL systems, ensuring plug-and-play functionality.

Applications:

• Connecting 428XL telemetry cables to seismic sensors, data loggers, or FDUs (Field Digital Units)

• Land-based and shallow-water oil and gas exploration

• Geophysical surveys in deserts, forests, or coastal regions

• Temporary or permanent seismic monitoring networks

Technical Specifications:

• Pin Configuration: 4-pin

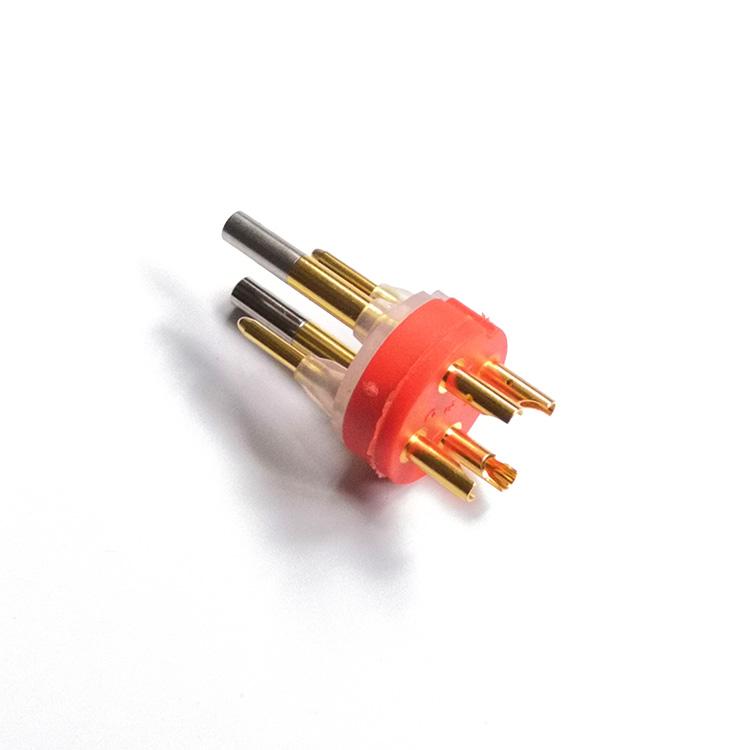

• Contact Material: Beryllium copper with 1µm gold plating

• Voltage Rating: 60V AC/DC

• Current Rating: 5A per contact

• Operating Temperature: -40°C to +85°C

• Mating Cycles: ≥1,000 cycles

• Cable Compatibility: 428XL WPSR Link cables

Why Choose This Connector?
The FM4 Connector WPSR enhances the reliability of 428XL systems by delivering secure, low-noise connections in challenging conditions. Its compact design and corrosion-resistant materials minimize maintenance needs, while the standardized WPSR interface ensures effortless scalability across seismic arrays. Whether deploying in arid deserts or humid coastal zones, this connector guarantees uninterrupted data flow for accurate resource exploration.
