| Place of Origin: | China |
| Brand Name: | EGL |
| Certification: | ISO9001 |
| Model Number: | EG-2-HS260 |
| MQQ: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Credit Card |
| Supply Ability: | 5000 pcs/month |

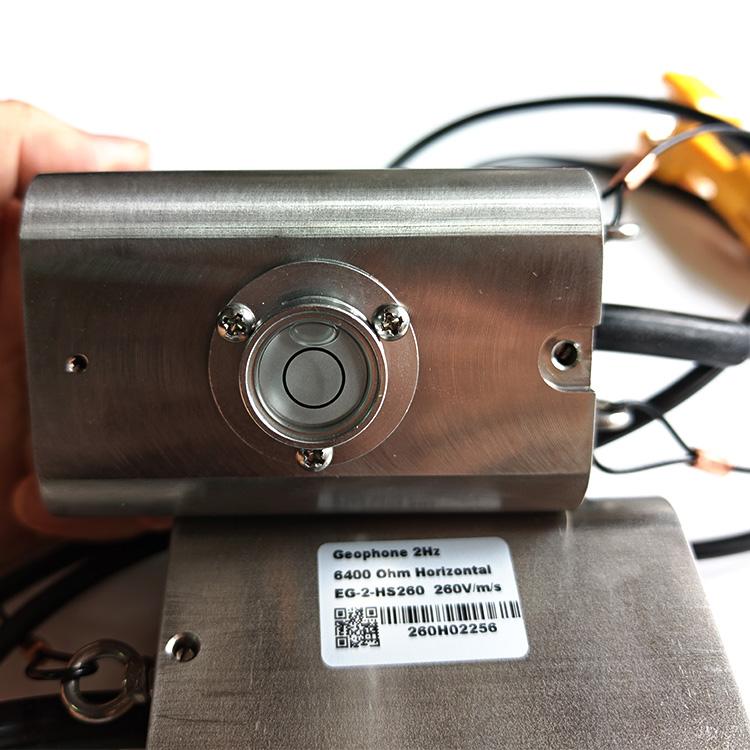

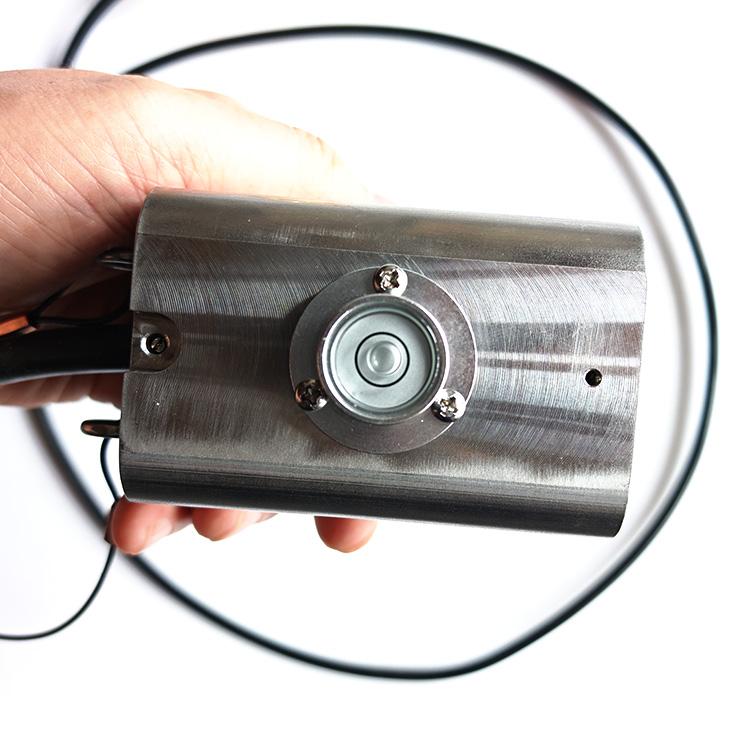

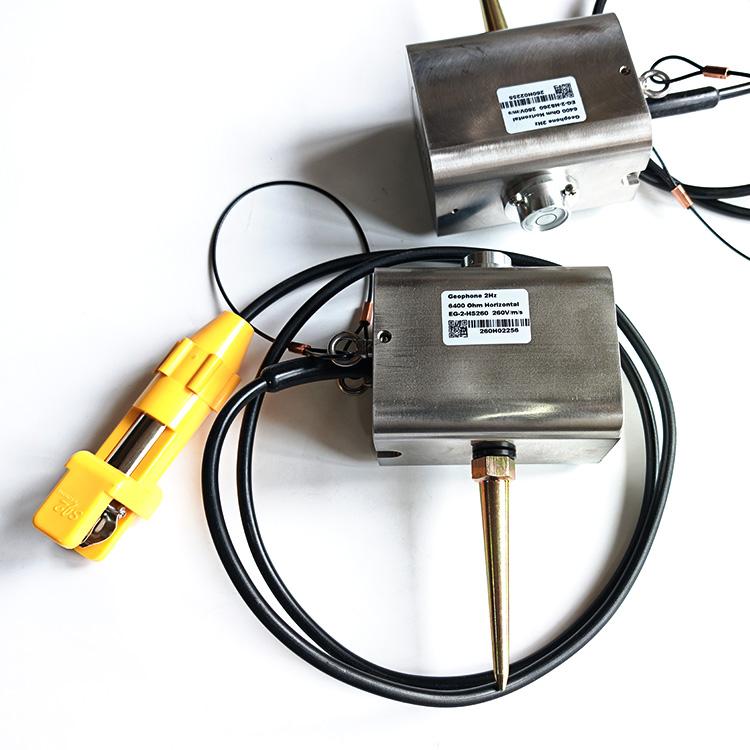

EG-2-HS260 Geophone 2Hz Horizontal Metal land case Split Spring Clips Connector
The geophone 2Hz has good parameter consistency, firm mechanism, good tightness, high sensitivity, low distortion, reasonable damping coefficient, and high resolution, which can meet the requirements of multiwave component seismic data acquisition technology.
Working frequency bandwidth ：2Hz - 300 Hz
The Seismic geophones 2Hz are mainly used for deep seismic surveys, advanced predictions, natural seismic surveys, pulsating microseismic measurements of bridges, dams, highways and railways, and safety monitoring.

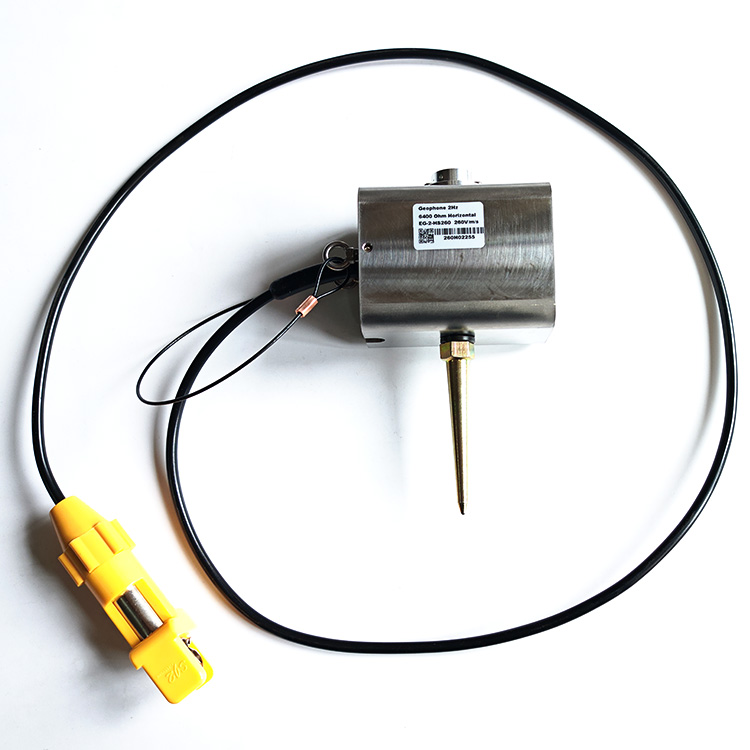

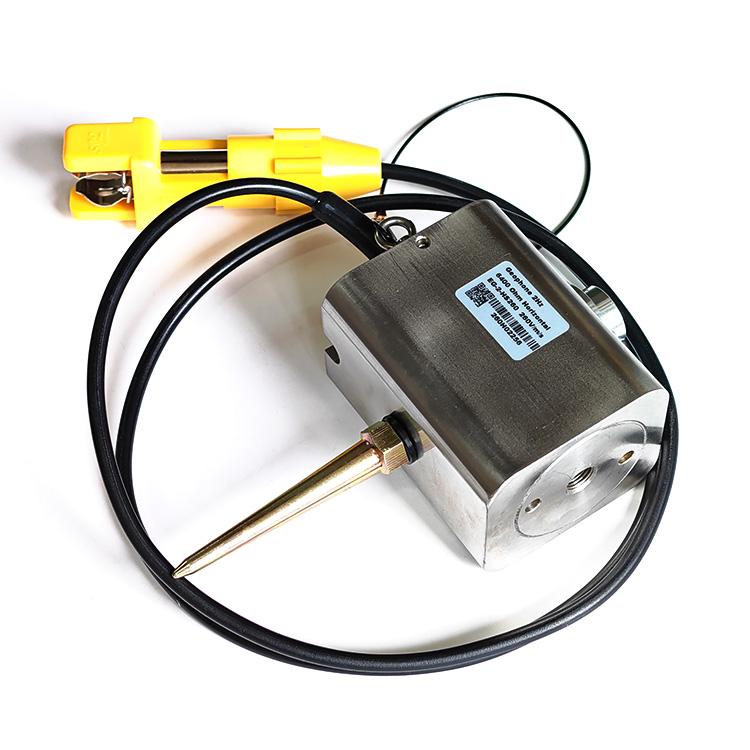

Single EG-2-HS260 Geophone 2Hz Horizontal in metal land case with spike 75mm, with 1m leader cable, terminated with Split Spring Clips Connector. （Sensitivity 260V/m/s）
| Type | EG-2-HS260 |
|---|---|
| Natural Frequency ( Hz ) | 2.0 ± 15% |
| Direction | Horizontal |
| Coil Resistance/ Rc(Ω) | 6400 ±10% |
| Sensitivity ( V/m/s ) | 260V/m/s ±15% |
| Damping | 0.7 ±15% |
| Distortion ( % ) | ≦0.3 |
| Spurious Frequency(Hz) | ≧90 |
| Coil’s Maximum Displacement /P-P (mm) | 3 |
| Moving Mass(g) | 60 |
| Element Diameter (mm) | 38.5mm |
| Element Height (mm) | 46mm |
| Weight ( g ) | 270g |
| Working Temperature (℃) | -40℃ to +80℃ |
| Warranty Period | 1 years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
Data sheets of EG-2-HS260 High Sensitivity Geophone 2Hz
