| Place of Origin: | China |
| Brand Name: | EGL |
| Certification: | ISO9001 |
| Model Number: | EG-2U-II |
| MQQ: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, Credit Card |
| Supply Ability: | 2000 pcs/month |

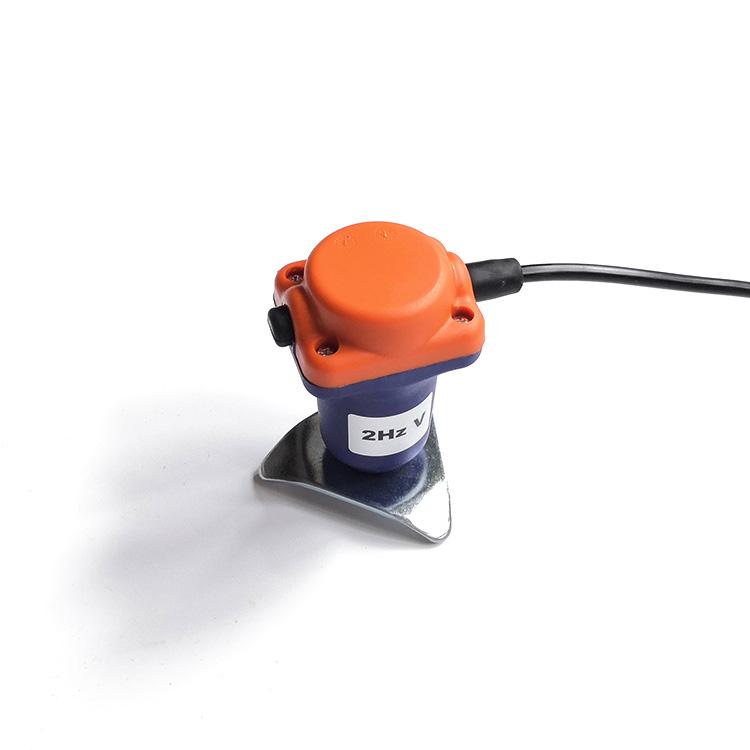

Single EG-2U-II Geophone 2Hz Vertical in Land Case with Tripods Base
The geophone 2Hz has good parameter consistency, firm mechanism, good tightness, high sensitivity, low distortion, reasonable damping coefficient, and high resolution, which can meet the requirements of multiwave component seismic data acquisition technology.
Working frequency bandwidth ：2Hz - 200 Hz
The Seismic geophones 2Hz are mainly used for deep seismic surveys, advanced predictions, natural seismic surveys, pulsating microseismic measurements of bridges, dams, highways and railways, and safety monitoring.

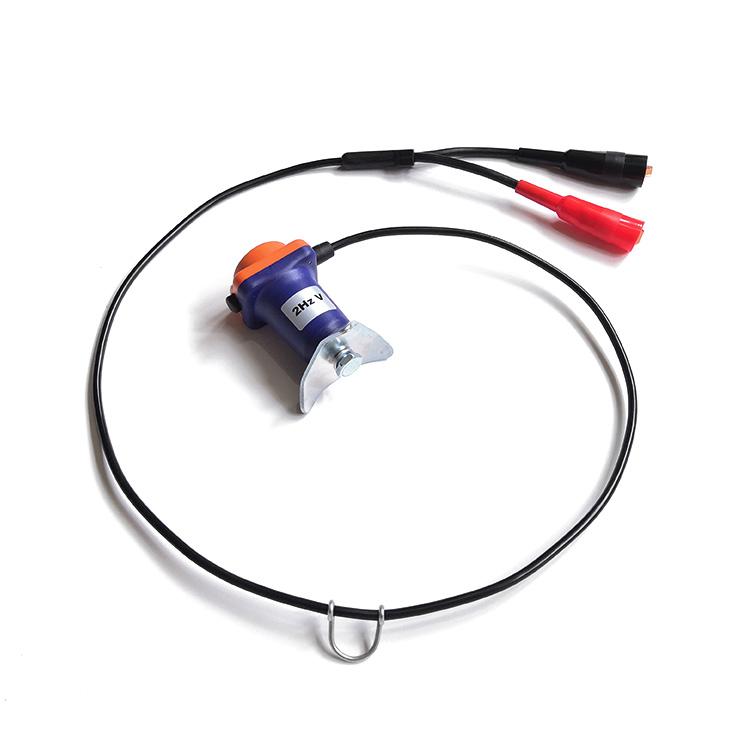

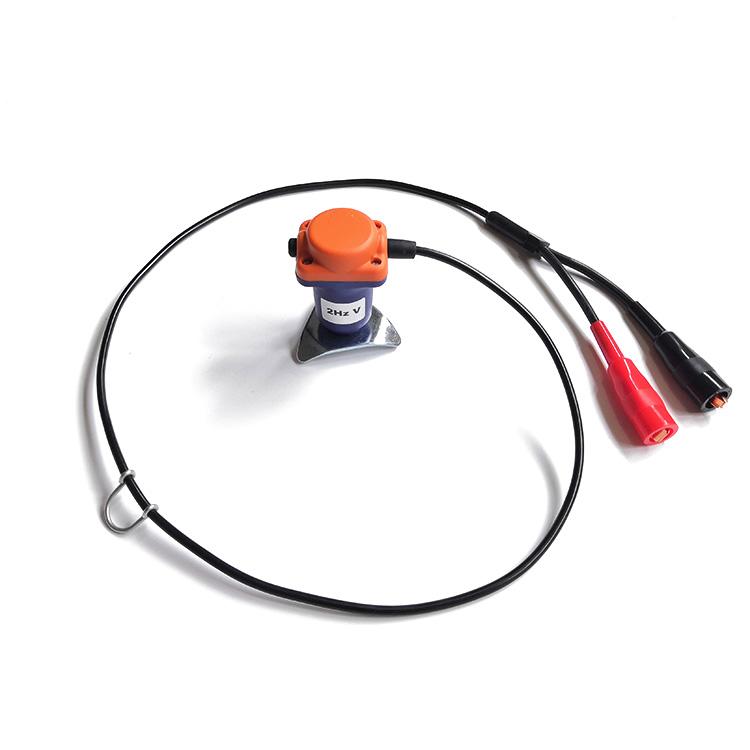

Single EG-2U-II Geophone 2Hz vertical in land case with tripods base, with 1m leader cable, with one D-Loop , terminated with Mueller Clips Connector.
| Type | EG-2U-II |
|---|---|
| Natural Frequency ( Hz ) | 2.0 ± 20% |
| Open-circuit sensitivity (V/m/s) | 200 ± 10% |
| Coil Resistance (Ω) | 9400 ± 5% |
| Open Damping | 0.7 ± 20% |
| Distortion (@12Hz&0.7 in/s peak-peak coil-to-case velocity) | ≤0.3% |
| Distortion measurement frequency (Hz) | 12 |
| Moving Mass ( g ) | 25 |
| Coil travel peak -peak (mm) | 3 |
| Diameter ( mm ) | 30.2 |
| Height ( mm ) | 43.8 |
| Weight ( g ) | 143 |
| Positive terminal | Free terminal closes to the “+” sign |
| Special Notes | All parameters are specified at 22 °C (71.6 °F) in unless otherwise specified. |
| Operating Temperature Range ( ℃ ) | -40℃ to +80℃ |
| Warranty Period | 1.5 years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
