Product Details:
| Place of Origin: | China |
| Brand Name: | EGL |
| Certification: | ISO9001 |
| Model Number: | EG-4.5-II |
Payment & Shipping Terms:
| MQQ: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Credit Card |
| Supply Ability: | 1000 pcs/month |
Product Description
Vertical Geophone 4.5Hz in waterproof land case without connector
The geophone 4.5hz (EG-4.5-II) is a conventional type of moving coil geophone with small
error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.
It is equivalent to SM-6 B coil 4.5hz geophone.
Widely used in industrial vibration-monitoring systems.
Ideal choice for shear-wave horizontal elements.

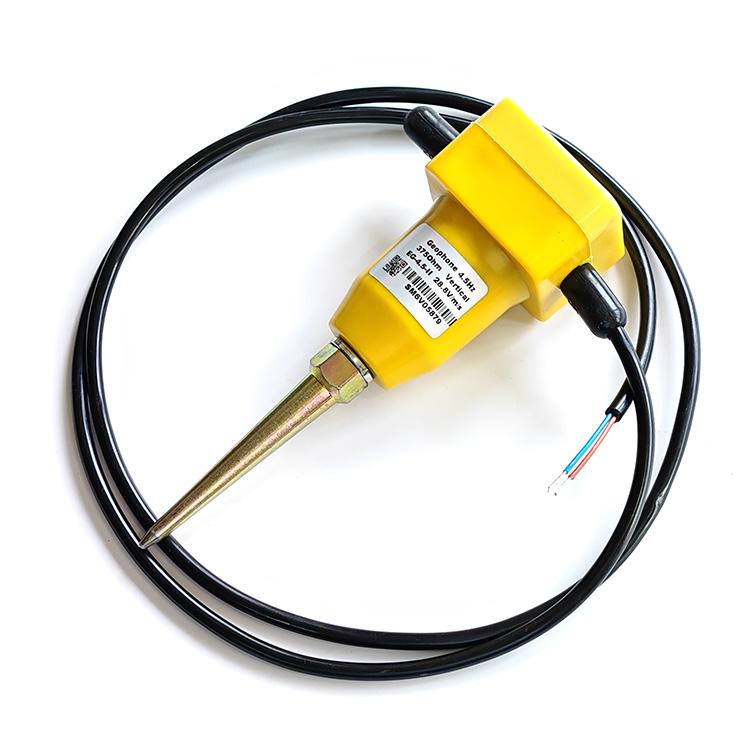

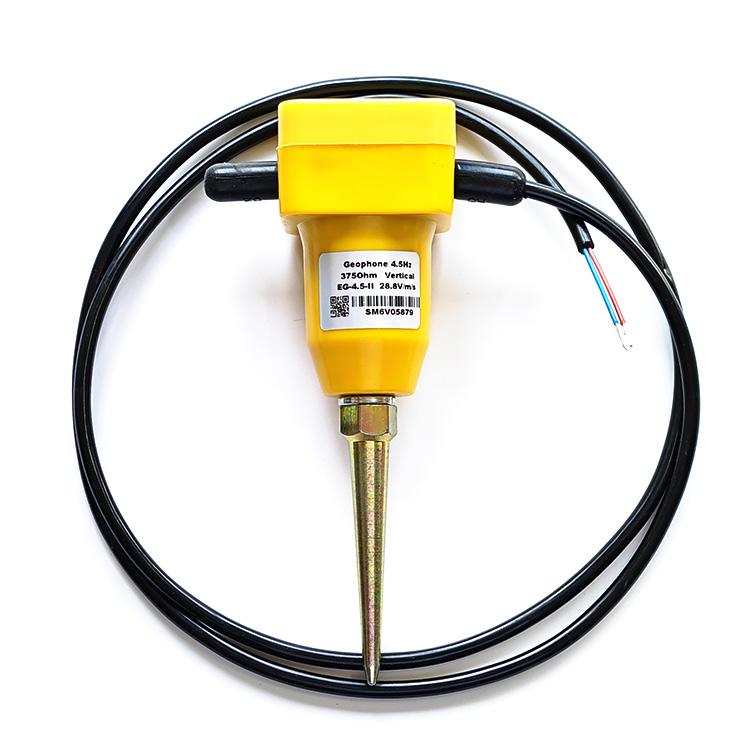

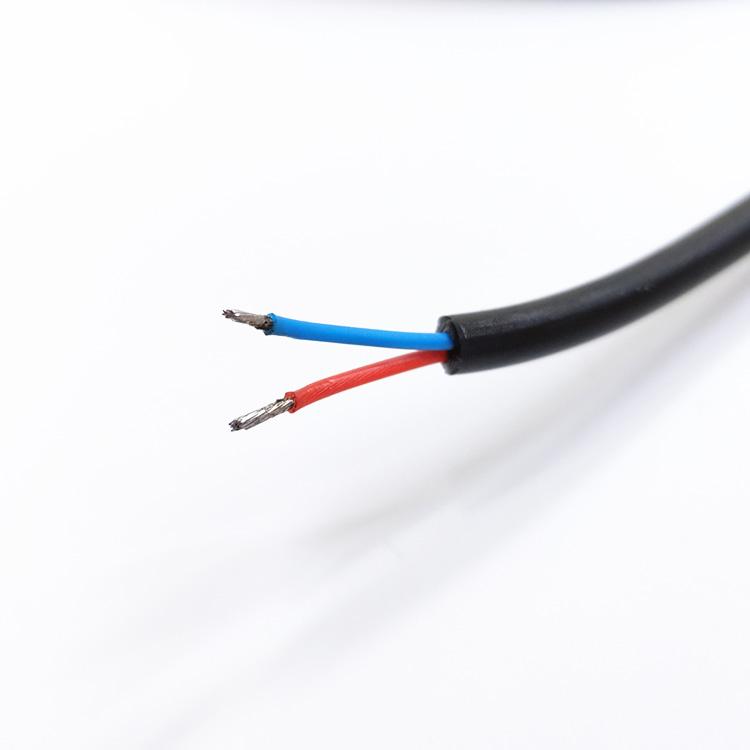

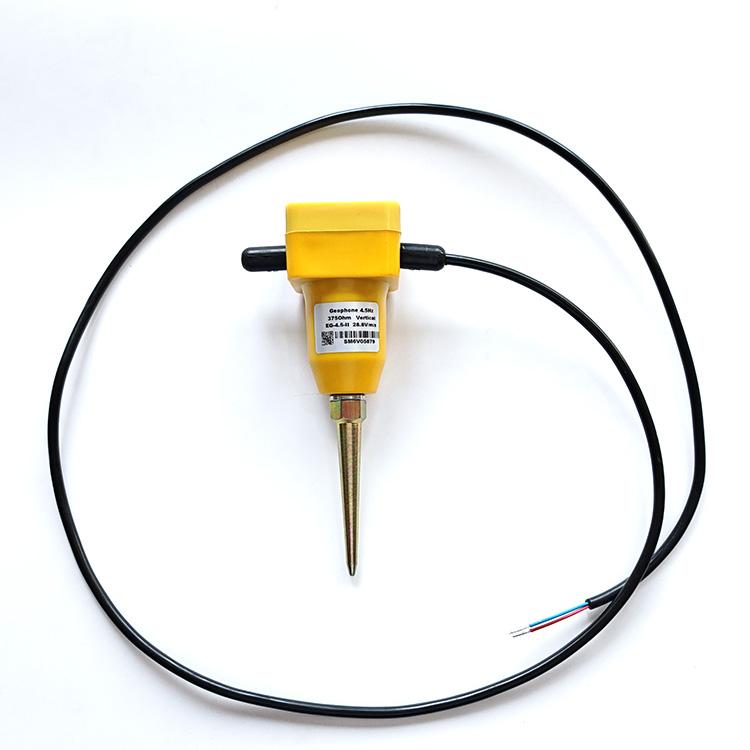

Single geophone 4.5Hz vertical in waterproof land case with spike 75mm, with 1m leader cable, terminated without connector.
Specification
| Type | EG-4.5-II |
|---|---|
| Natural Frequency ( Hz ) | 4.5±10% |
| Coil resistance(Ω) | 375±5% |
| Damping | 0.6±5% |
| Open circuit intrinsic voltage sensitivity ( v/m/s ) | 28.8 v/m/s ±5% |
| Harmonic distortion ( % ) | ≦0.2% |
| Typical Spurious Frequency (Hz ) | ≧140Hz |
| Moving Mass ( g ) | 11.3g |
| Typical case to coil motion p-p ( mm ) | 4mm |
| Allowable Tilt | ≦20º |
| Height ( mm ) | 36mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 86g |
| Operating Temperature Range ( ℃ ) | -40℃ to +100℃ |
| Warranty Period | 3 years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
