Home > Products > Resistivity cable with Split Spring Take-out Ordinary Type without connector
Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: Resistivity Cable
Payment & Shipping Terms:
MQQ: 1 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: T/T, Credit Card
Supply Ability: 1000 pcs/month
Product Description

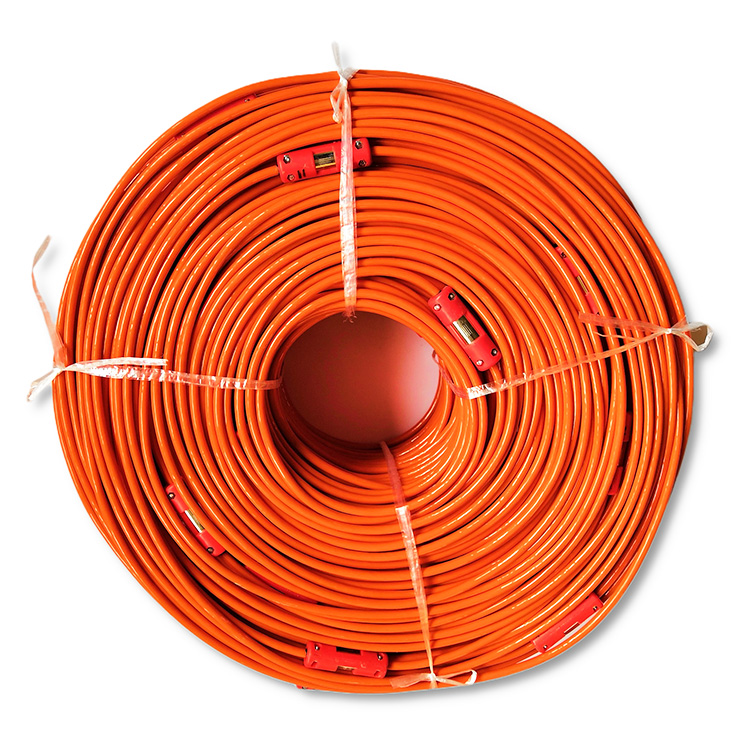

Resistivity cable with Split Spring Take-out Ordinary Type without connector

The geophysical resistivity meter cable is a special cable for the ERT ERI method measurement system. It is mainly used for the connection between the instrument and the electrode in the 2D/3D ERT ERI survey method operation of minerals, hydrology, engineering, environment and other geological exploration.

1. This cable is a supporting product for the field operation of the electrical measurement system. It is suitable for the automatic conversion of multiple electrodes. The cable has light weight, high mechanical strength, cold resistance, tensile strength and good insulation performance.

2. This cable has a small DC resistance. It has a large carrying current and good waterproof performance. It has environmental requirements for field operations.

3.This cable has high mechanical strength, high tensile strength, good waterproof performance and environmental requirements for field operations.

4. The Take Out are tightly sealed, have good contact, and have good water resistance.

Resistivity cable 30 channels, interval 5 meters, with Split Spring Take-out Ordinary Type, lead-in 10m at each end,terminated without connector at each end, total cable length 165 meters .




Resistivity Cable

Number of Channel

12 Channel / 16 Channel / 21-Channel
/30-Channel /32-Channel


Connector Type

27-pin connector/

30-pin connector/

32-pin  connector/

50-pin connector/


Cable O.D


Electrode Connection

Split Spring Take-out Molded Type/

Split Spring Take-out Ordinary  Type/



10m/20m / or Custom Lead-in Length


2.5m/5m/10m / or Custom Interval Distance

Working Temperature
