Product Details:
Place of Origin: China
Brand Name: EGL
Certification: ISO9001
Model Number: 24 Channels Hydrophone Cable
Payment & Shipping Terms:
MQQ: 1 pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: T/T, Credit Card
Supply Ability: 1000 pcs/month
Product Description

24 Channels Hydrophone Cable with 61 pin (24-61) female connector

Hydrophone of YH-25-11A is a piezoelectric sensor for prospecting purpose in swamp,river and shallow sea of transition zone. The product is small in size, stable, high sense for output and non-directional receiving, its high temperature injection molding seal makes it better for water proof, its tail suspension wire’s design makes it more suitable for field wiring.

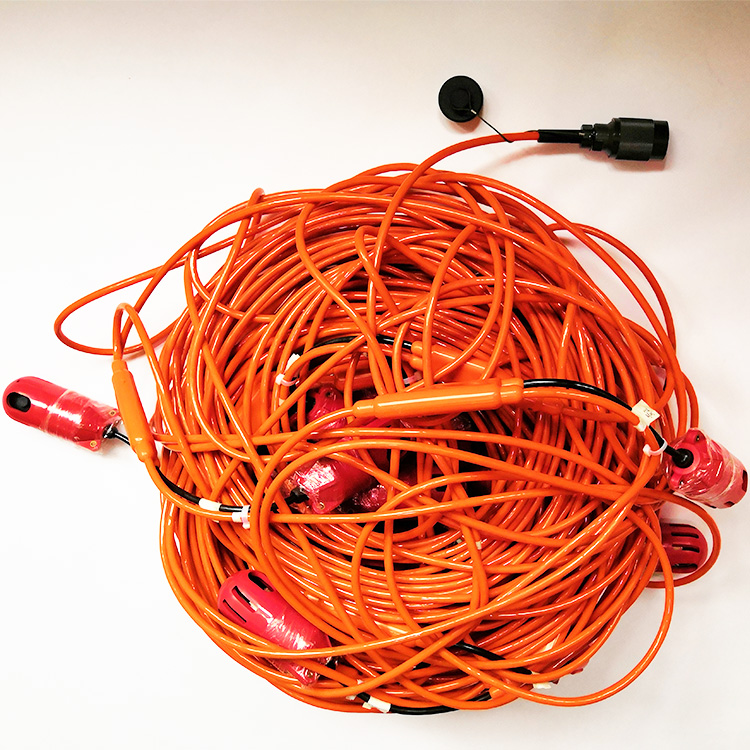

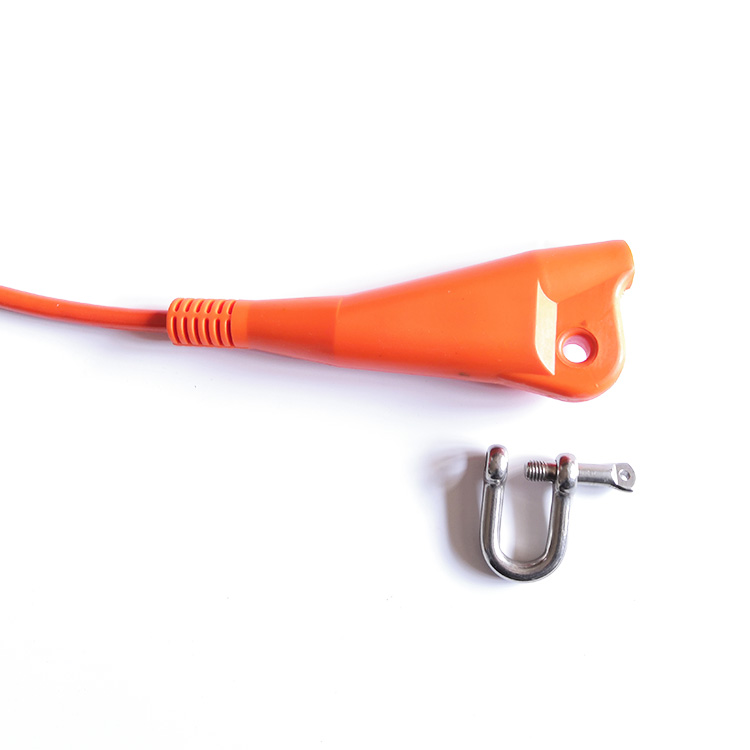

24 Channel Hydrophone Cable, with 24 hydrophone 10hz (YH-25-11A), installed 10 meters spaced, with 91.50 metres of cable from first hydrophone to 61pin (24-61) female connector, the other end lead in cable 1 meter and terminated with the orange tail ring, total hydrophone cable length 322.50 meters .

If you need other configuration, Lead in Cable Length, Interval, Connector, please contact us.





Hydrophone YH-25-11A

Natural Frequency

10 Hz (± 10%)

D C Resistance(DCR)

160 ohm (±10%)



Voltage Sensitivity


Test @


Working Depth


Operation Temperature

0°C / +35°C

Cable Length

As per client’s requirements

Connector Type

As per client’s requirements

Unit Length

158mm( 6.22 in )with case

Unit Diameter

60mm ( 2.36 in ) with case




Can be interchanged with MP-25,P-44A and LS-2512.

All parameters specified here in are rated at a temperature 20℃±2℃ .
